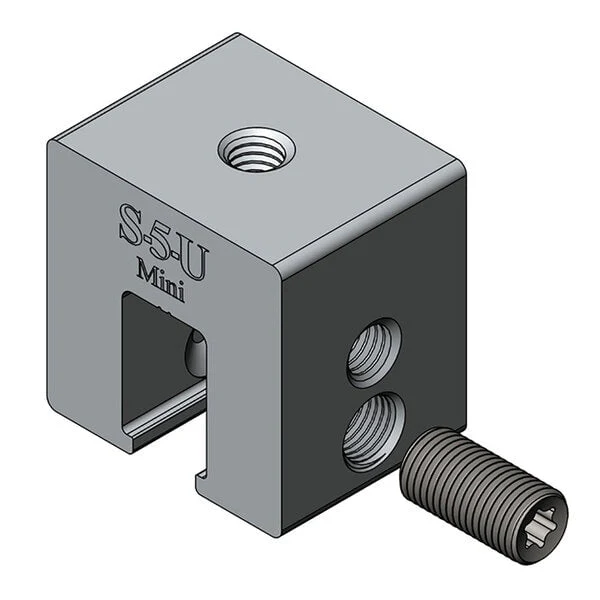

S-5-U Mini Metal Roof Clamps
The U Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.
All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.
Specifications:
- Accommodates most standing seam profiles in North and South America, including structural and architectural profiles
- Use on vertically-oriented seams, OR
- Rotate clamp 90° and use on most horizontal seam profiles w/ horizontal projection ≥ 0.65” (16.5 mm)
- Use for light and medium-duty applications, such as utility mounting and solar PV
- Smaller than the standard S-5-U
- One T-30 Torx round-point setscrew (Torx bit tip provided)
- No M8 bolt included
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
Original: $5.60
-70%$5.60
$1.68More Images
S-5-U Mini Metal Roof Clamps
The U Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.
All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.
Specifications:
- Accommodates most standing seam profiles in North and South America, including structural and architectural profiles
- Use on vertically-oriented seams, OR
- Rotate clamp 90° and use on most horizontal seam profiles w/ horizontal projection ≥ 0.65” (16.5 mm)
- Use for light and medium-duty applications, such as utility mounting and solar PV
- Smaller than the standard S-5-U
- One T-30 Torx round-point setscrew (Torx bit tip provided)
- No M8 bolt included
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
