S-5-T Mini NB Clamps
The T Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.
All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

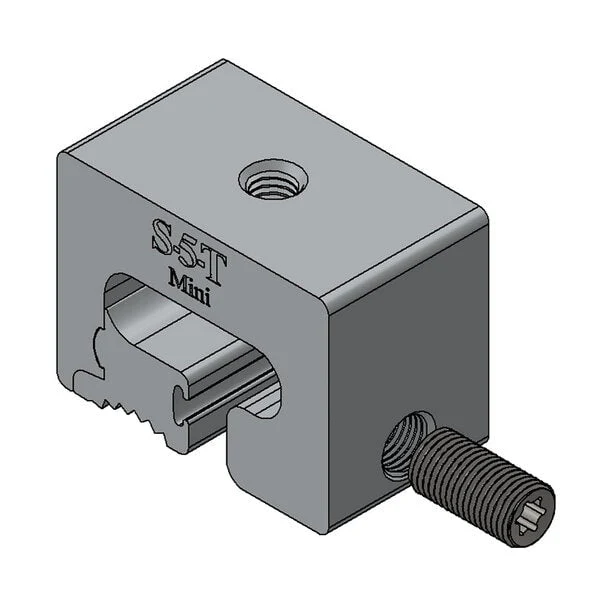

The S-5-T Mini is a bit shorter than the S-5-T and has one setscrew rather than two. The mini (illustrated in the rendering to the right) is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.
Specifications:

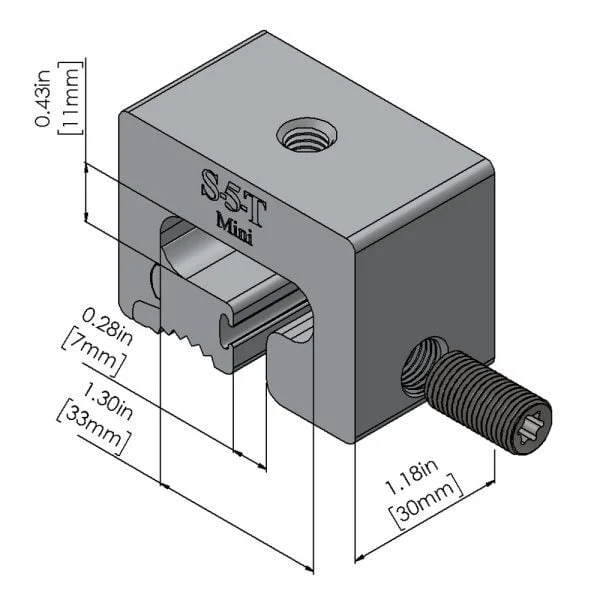

- Developed for profiles featuring a T-shaped seam configuration with a horizontal dimension ≤ 1.3” (33 mm)
- Two-piece design allows the clamp to be placed over the top of the seam at any desired location
- Fits architectural single-fold (or “angle-seam”) and horizontal seam with horizontal dimension ≤ 5/8” (15 mm)
- Light and medium-duty applications, like utility mounting
- Smaller than the standard S-5-T
- One T-30 Torx round-point setscrew (Torx bit tip provided)
- No M8 bolt included
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
Original: $7.35
-70%$7.35
$2.20More Images
