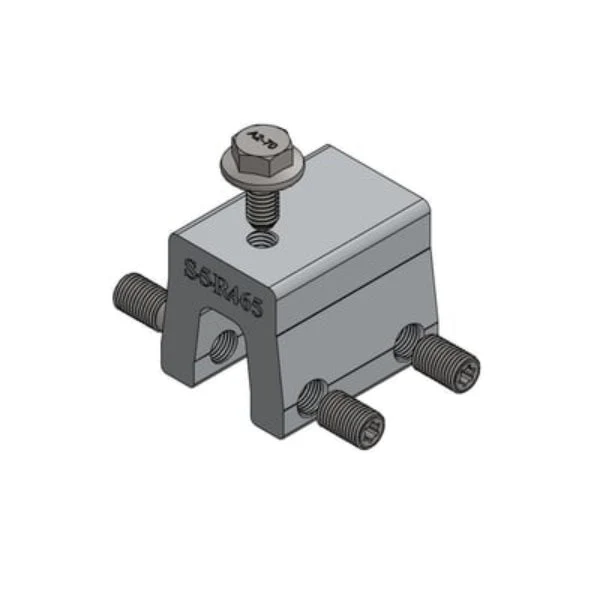

S-5-R465 Metal Roof Clamps
The S-5-R465 (“R” stands for Rib-Roof) is a non-penetrating, standing seam metal roof (SSMR) clamp.
The R465 is specially designed for the Zambelli RIB-ROOF 465, McElroy Metal’s Mirage II, Rib Roof Metal Systems’ Rib Roof, DimonDek® 400, Steel & Tube Paneldek 400 and similar roof profiles. This clamp utilizes two pairs of opposing setscrews to engage the seam material.
Specifications:
- Unique design with opposing setscrews that engage the ribs beneath the top bulb, maximizing published holding strength
- Heavy-duty applications, such as snow retention
- Four T-30 Torx round-point setscrews (Torx bit tip provided)
- One M8 bolt included
It is also available in the smaller S-5-R465 (Mini).
The S-5-R465 clamp, designed for rib-roof panels, features bulb seams and employs two pairs of opposing setscrews for secure attachment without penetrating the roof surface.
If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
