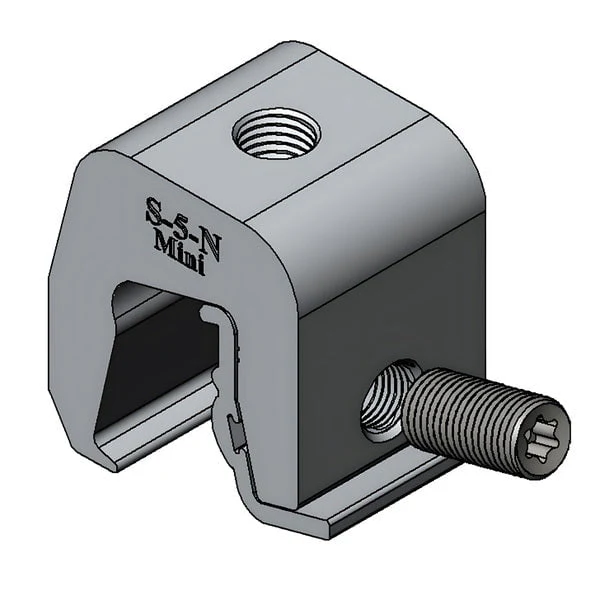

S-5-N Mini Metal Roof Clamps
The N Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.
The S-5-N Mini offers correct fit to the same profiles as the standard S-5-N but is shorter and has one setscrew rather than two. The Mini is ideal for attaching various rooftop accessories, such as solar arrays, signs, walkways, satellite dishes, lightning protection systems, antennas, rooftop lighting, conduit and condensate lines.
Specifications:
- Angled setscrews for easy installation; no special tools required
- Special design for “nail-flange” SSR

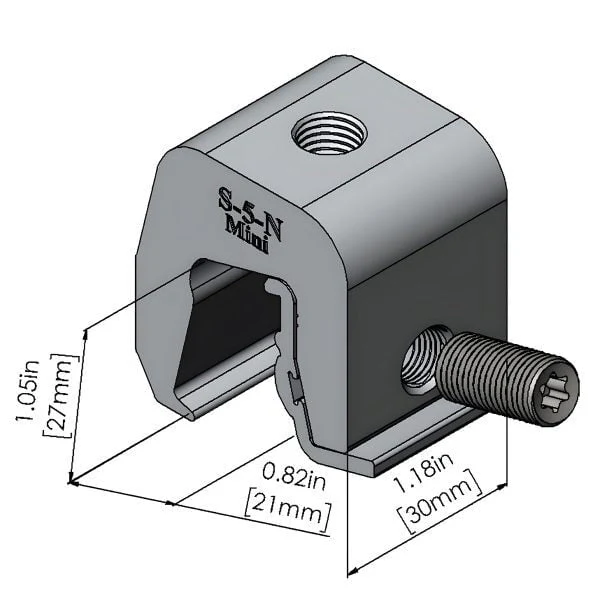

- Clamp insert facilitates best-fit installation; no special tools required profiles ≤ 1” (25 mm) in height and with a base of rib dimension < .82” (20 mm) without damage to panel seam
- Use for medium or light-duty applications, such as solar or satellite dish mounting
- Smaller than the standard S-5-N
- One T-30 Torx round-point setscrew (Torx bit tip provided)
- No M8 bolt included
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
