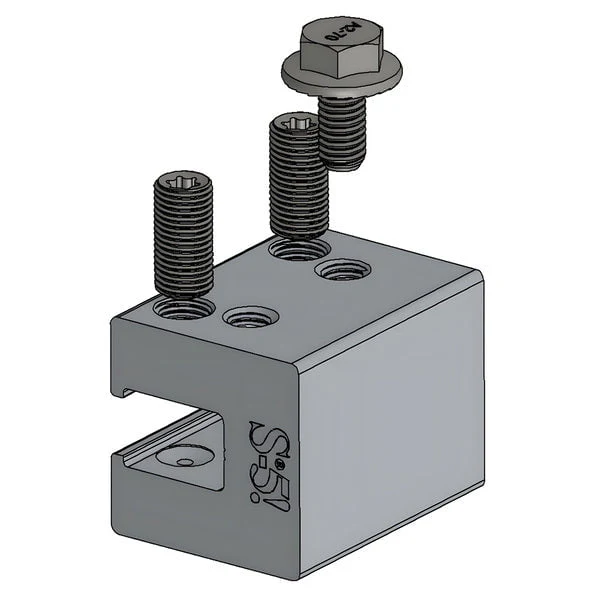

S-5-H90 Metal Roof Clamps
The S-5-H90 (“H” for Horizontal seam) is designed for standing seam panels with horizontal, single-folded seams.
For horizontal seam dimensions greater than 0.65” (16.5 mm), the H90 offers you a secure and cost-effective utility mounting attachment solution.The setscrews are top-down oriented. For horizontal (or “angle seams”) of .5” (13mm) or less, see the S-5-S.

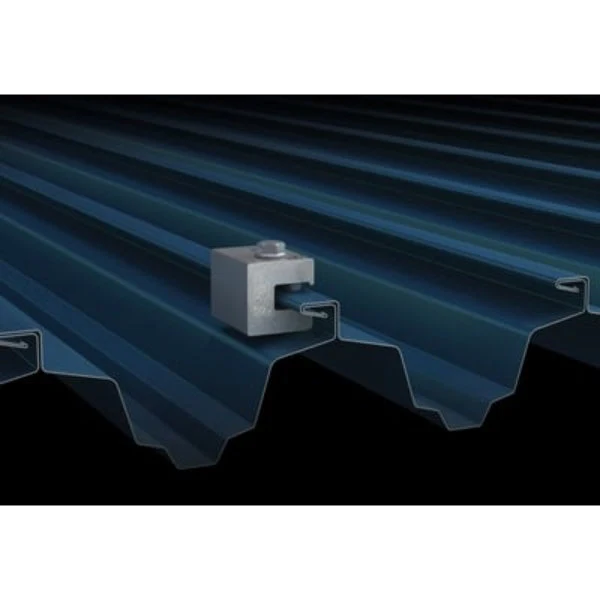

Turning the clamp 90 degrees so that the bolt hole side is facing up, slip the clamp on the seam and tighten the setscrews. After the clamp is installed, affix ancillary items using either of the two threaded bolt holes and bolt provided. The S-5-H90 is perfect for use with S-5! ColorGard® and X-Gard™ snow retention systems and other heavy-duty applications.
Specifications:

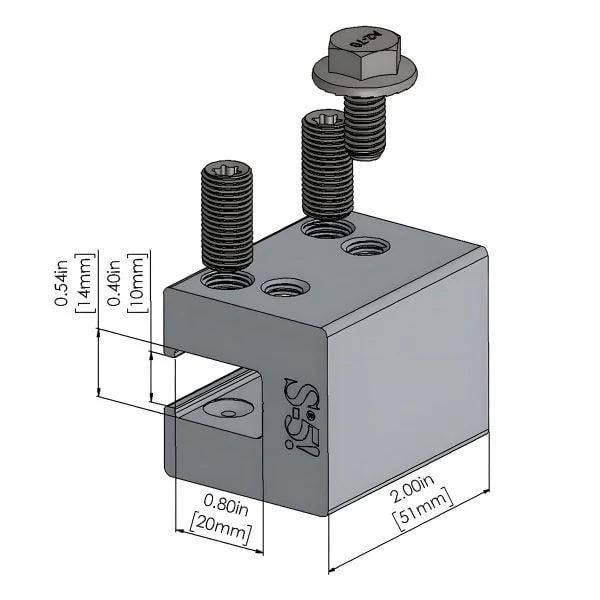

- Designed for standing seam panels with horizontal, single-folded seams
- Secure and cost-effective solution for horizontal seam dimensions ≥ 0.65” (16.5 mm)
- Fits all standing seams the S-5-U fits horizontally and fits fully seamed profiles the S-5-H fits vertically - but is more cost-effective than either.
- Heavy-duty applications, such as snow retention
- Two T-30 Torx round-point setscrews - side installation - (Torx bit tip provided)
- One M8 bolt included
It is also available in the smaller S-5-H90 (Mini).
The S-5-H90 clamp is designed for horizontal, single-folded seams, providing secure attachment without penetrating the metal roof panels, suitable for various standing seam profiles.
If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
