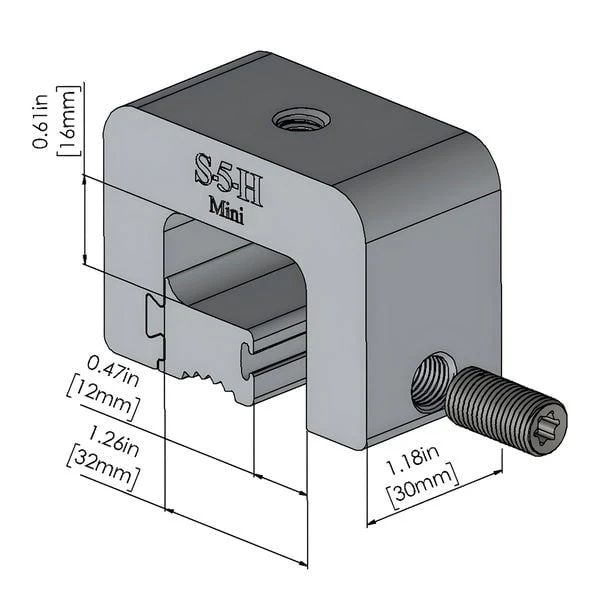

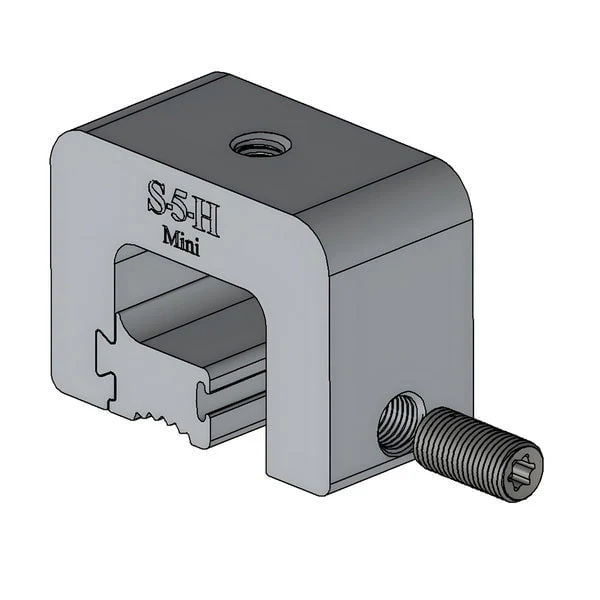

S-5-H Mini Metal Roof Clamps
The S-5-H Mini is a bit shorter than the S-5-H and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.
Specifications:
- For standing seam panels with horizontal seam orientation (single-folded)
- Accommodates roof panels with a horizontal seam that is not fully closed
- Two-piece design allows attachment anywhere along length of seam
- Insert allows clamp to fit over wider horizontal seams up to .75” (19 mm)
- Smaller than the standard S-5-H
- One T-30 Torx round-point setscrew (Torx bit tip provided)
- No M8 bolt included
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
More Images
S-5-H Mini Metal Roof Clamps
The S-5-H Mini is a bit shorter than the S-5-H and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.
Specifications:
- For standing seam panels with horizontal seam orientation (single-folded)
- Accommodates roof panels with a horizontal seam that is not fully closed
- Two-piece design allows attachment anywhere along length of seam
- Insert allows clamp to fit over wider horizontal seams up to .75” (19 mm)
- Smaller than the standard S-5-H
- One T-30 Torx round-point setscrew (Torx bit tip provided)
- No M8 bolt included
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The S-5-H Mini is a bit shorter than the S-5-H and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.
Specifications:
- For standing seam panels with horizontal seam orientation (single-folded)
- Accommodates roof panels with a horizontal seam that is not fully closed
- Two-piece design allows attachment anywhere along length of seam
- Insert allows clamp to fit over wider horizontal seams up to .75” (19 mm)
- Smaller than the standard S-5-H
- One T-30 Torx round-point setscrew (Torx bit tip provided)
- No M8 bolt included
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
