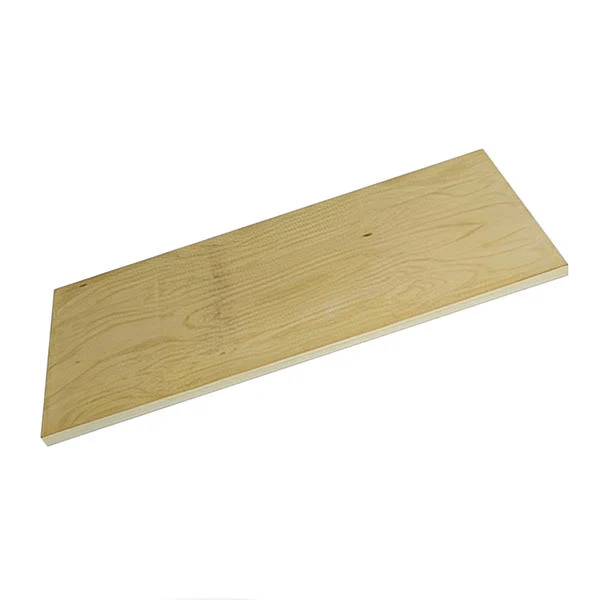

Hunter Panels XCI Ply Class A (5/8 Ply Attached) 4ft x 8ft - All Sizes

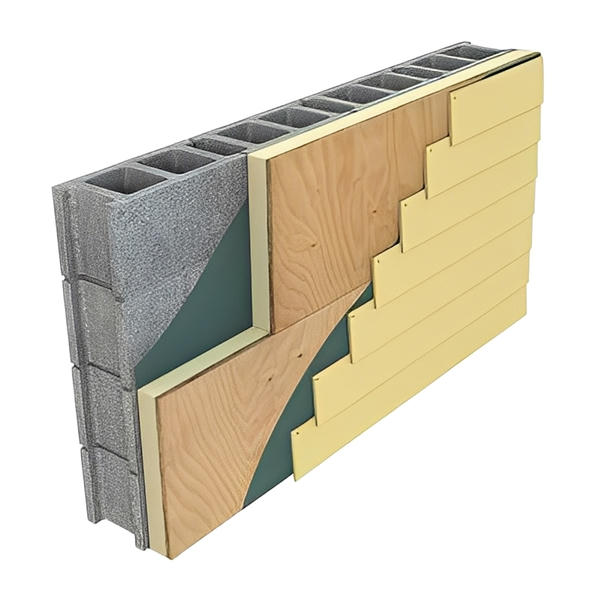

Xci Ply is an energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and 5/8" fire treated plywood on the other. It is designed for use in commercial wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.
| Thickness | R-Value | Sq Ft/Pallet | Sheets Per Pallet |
|---|---|---|---|
| 1.6" | 6.8 |
960 |
30 |
| 2.1" | 9.8 |
704 |
22 |
| 2.6" | 12.9 |
576 |
18 |
| 3.1" | 16.1 |
480 |
15 |
| 3.6" | 19.3 | 416 | 13 |
| 4.1" | 22.5 |
352 |
11 |
Features and Benefits
- Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
- Designed for use in continuous insulation to assist in meeting the most current ASHRAE 90.1, IECC, IBC and IRC standards
- A superior combination of high insulating properties and mechanically attachable surface
- Provides improved dimensional stability and fire performance
- Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFCs, HCFCs or HFCs; Virtually zero Global Warming Potential (GWP). Use of Xci products helps reduce the carbon footprint of buildings.
- Incorporates APA-TECO Rated Exposure 1 Fire Treated Plywood with flame spread of <25 per ASTM E84
- Approved component of the Xci AEGIS Wall System
