Hunter Panels XCI Ply Class A (3/4 Ply Attached) 4ft x 8ft - All Sizes

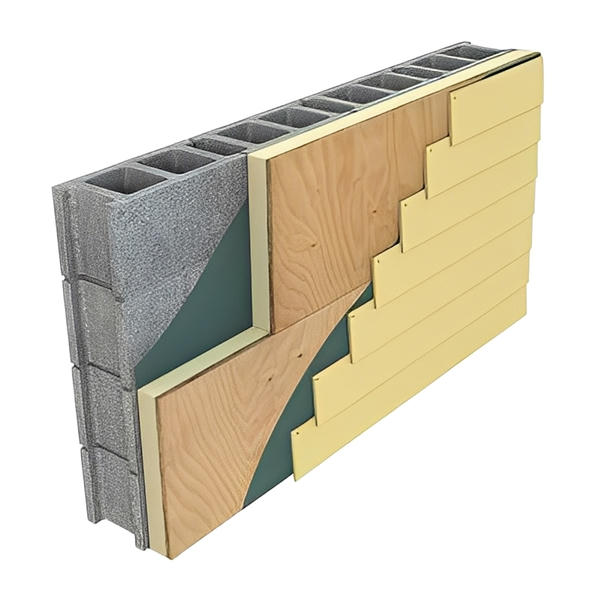

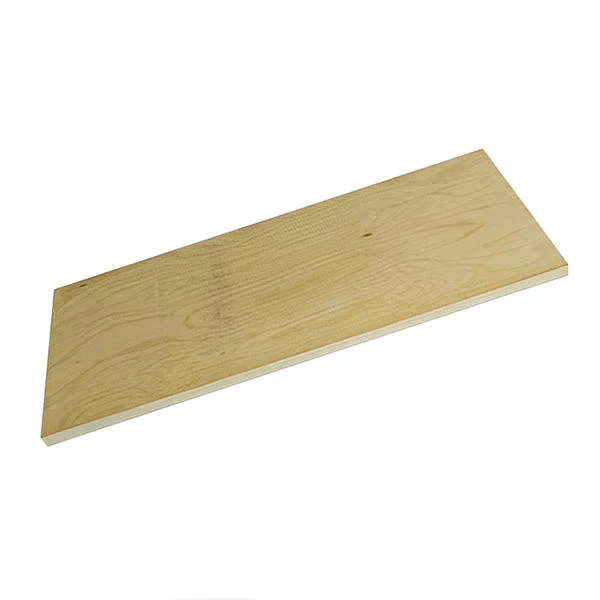

Xci Ply is an energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and ¾" fire treated plywood on the other. It is designed for use in commercial wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.
| Thickness | R-Value | Sq Ft/Pallet | Sheets Per Pallet |
|---|---|---|---|
| 1.7" | 7 |
896 |
28 |
| 2.2" | 10 |
672 |
21 |
| 2.7" | 13.1 |
544 |
17 |
| 3.2" | 16.3 |
480 |
15 |
| 3.7" | 19.5 | 384 |
12 |
| 4.2" | 22.7 |
352 |
11 |
Features and Benefits
- Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
- Designed for use in continuous insulation to assist in meeting the most current ASHRAE 90.1, IECC, IBC and IRC standards
- A superior combination of high insulating properties and mechanically attachable surface
- Provides improved dimensional stability and fire performance
- Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFCs, HCFCs or HFCs; Virtually zero Global Warming Potential (GWP). Use of Xci products helps reduce the carbon footprint of buildings.
- Incorporates APA-TECO Rated Exposure 1 Fire Treated Plywood with flame spread of <25 per ASTM E84
- Approved component of the Xci AEGIS Wall System
Original: $5,000.00
-70%$5,000.00
$1,500.00More Images
Hunter Panels XCI Ply Class A (3/4 Ply Attached) 4ft x 8ft - All Sizes
Xci Ply is an energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and ¾" fire treated plywood on the other. It is designed for use in commercial wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.
| Thickness | R-Value | Sq Ft/Pallet | Sheets Per Pallet |
|---|---|---|---|
| 1.7" | 7 |
896 |
28 |
| 2.2" | 10 |
672 |
21 |
| 2.7" | 13.1 |
544 |
17 |
| 3.2" | 16.3 |
480 |
15 |
| 3.7" | 19.5 | 384 |
12 |
| 4.2" | 22.7 |
352 |
11 |
Features and Benefits
- Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
- Designed for use in continuous insulation to assist in meeting the most current ASHRAE 90.1, IECC, IBC and IRC standards
- A superior combination of high insulating properties and mechanically attachable surface
- Provides improved dimensional stability and fire performance
- Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFCs, HCFCs or HFCs; Virtually zero Global Warming Potential (GWP). Use of Xci products helps reduce the carbon footprint of buildings.
- Incorporates APA-TECO Rated Exposure 1 Fire Treated Plywood with flame spread of <25 per ASTM E84
- Approved component of the Xci AEGIS Wall System
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Xci Ply is an energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and ¾" fire treated plywood on the other. It is designed for use in commercial wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.
| Thickness | R-Value | Sq Ft/Pallet | Sheets Per Pallet |
|---|---|---|---|
| 1.7" | 7 |
896 |
28 |
| 2.2" | 10 |
672 |
21 |
| 2.7" | 13.1 |
544 |
17 |
| 3.2" | 16.3 |
480 |
15 |
| 3.7" | 19.5 | 384 |
12 |
| 4.2" | 22.7 |
352 |
11 |
Features and Benefits
- Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
- Designed for use in continuous insulation to assist in meeting the most current ASHRAE 90.1, IECC, IBC and IRC standards
- A superior combination of high insulating properties and mechanically attachable surface
- Provides improved dimensional stability and fire performance
- Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFCs, HCFCs or HFCs; Virtually zero Global Warming Potential (GWP). Use of Xci products helps reduce the carbon footprint of buildings.
- Incorporates APA-TECO Rated Exposure 1 Fire Treated Plywood with flame spread of <25 per ASTM E84
- Approved component of the Xci AEGIS Wall System
