Hunter Panels XCI NB (7/16 OSB Attached) 4ft x 8ft - All Sizes

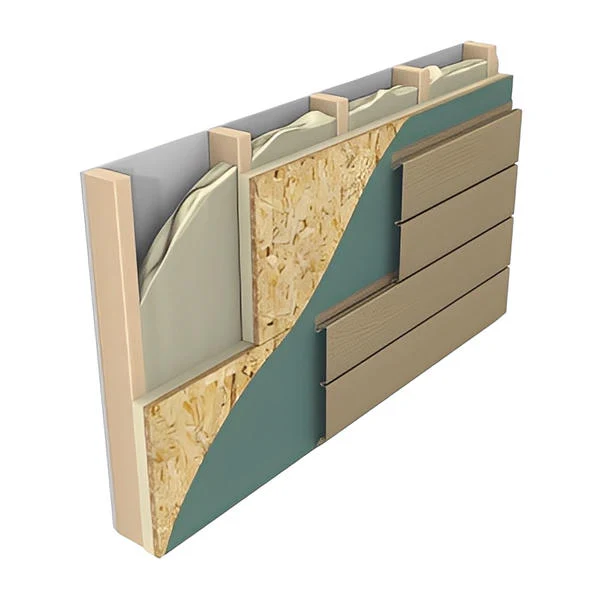

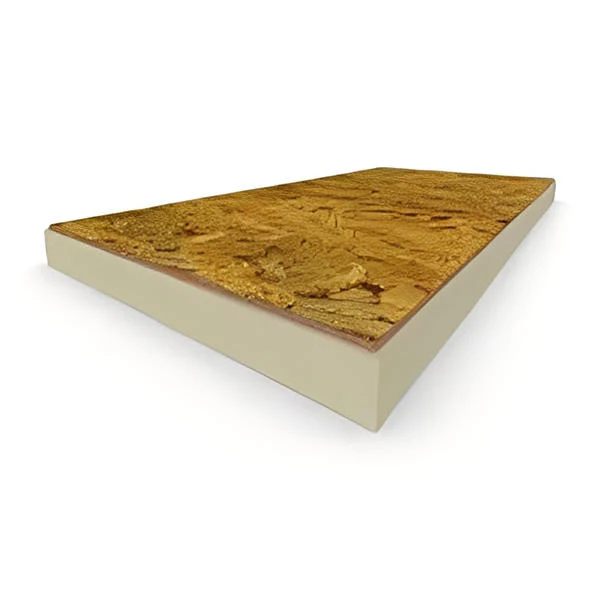

Xci NB is an energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and 7 /16" OSB or plywood on the other. It is designed for use in Type V commercial and residential wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.
| Thickness | R-Value | Sq Ft/Pallet | Sheets Per Pallet |
|---|---|---|---|
| 1.5" | 6.6 |
1024 |
32 |
| 2" | 9.6 |
768 |
24 |
| 2.5" | 12.7 |
608 | 19 |
| 3" | 15.9 |
512 | 16 |
| 3.5" | 19.1 | 416 | 13 |
| 4" | 22.3 |
384 |
12 |
| 4.5" | 25.6 |
320 |
10 |
Features & Benefits
- Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
- Designed for use in continuous insulation to assist in meeting the most current ASHRAE 90.1, IECC, IBC and IRC standards
- A superior combination of high insulating properties and nailable surface
- Provides improved dimensional stability and fire performance
- Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFCs, HCFCs or HFCs; Virtually zero Global Warming Potential (GWP). Use of Xci products helps reduce the carbon footprint of buildings.
- Incorporates APA-TECO Rated Exposure 1 OSB or Plywood
- Approved component of the Xci AEGIS Wall System
Original: $2,937.02
-70%$2,937.02
$881.11More Images
Hunter Panels XCI NB (7/16 OSB Attached) 4ft x 8ft - All Sizes
Xci NB is an energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and 7 /16" OSB or plywood on the other. It is designed for use in Type V commercial and residential wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.
| Thickness | R-Value | Sq Ft/Pallet | Sheets Per Pallet |
|---|---|---|---|
| 1.5" | 6.6 |
1024 |
32 |
| 2" | 9.6 |
768 |
24 |
| 2.5" | 12.7 |
608 | 19 |
| 3" | 15.9 |
512 | 16 |
| 3.5" | 19.1 | 416 | 13 |
| 4" | 22.3 |
384 |
12 |
| 4.5" | 25.6 |
320 |
10 |
Features & Benefits
- Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
- Designed for use in continuous insulation to assist in meeting the most current ASHRAE 90.1, IECC, IBC and IRC standards
- A superior combination of high insulating properties and nailable surface
- Provides improved dimensional stability and fire performance
- Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFCs, HCFCs or HFCs; Virtually zero Global Warming Potential (GWP). Use of Xci products helps reduce the carbon footprint of buildings.
- Incorporates APA-TECO Rated Exposure 1 OSB or Plywood
- Approved component of the Xci AEGIS Wall System
